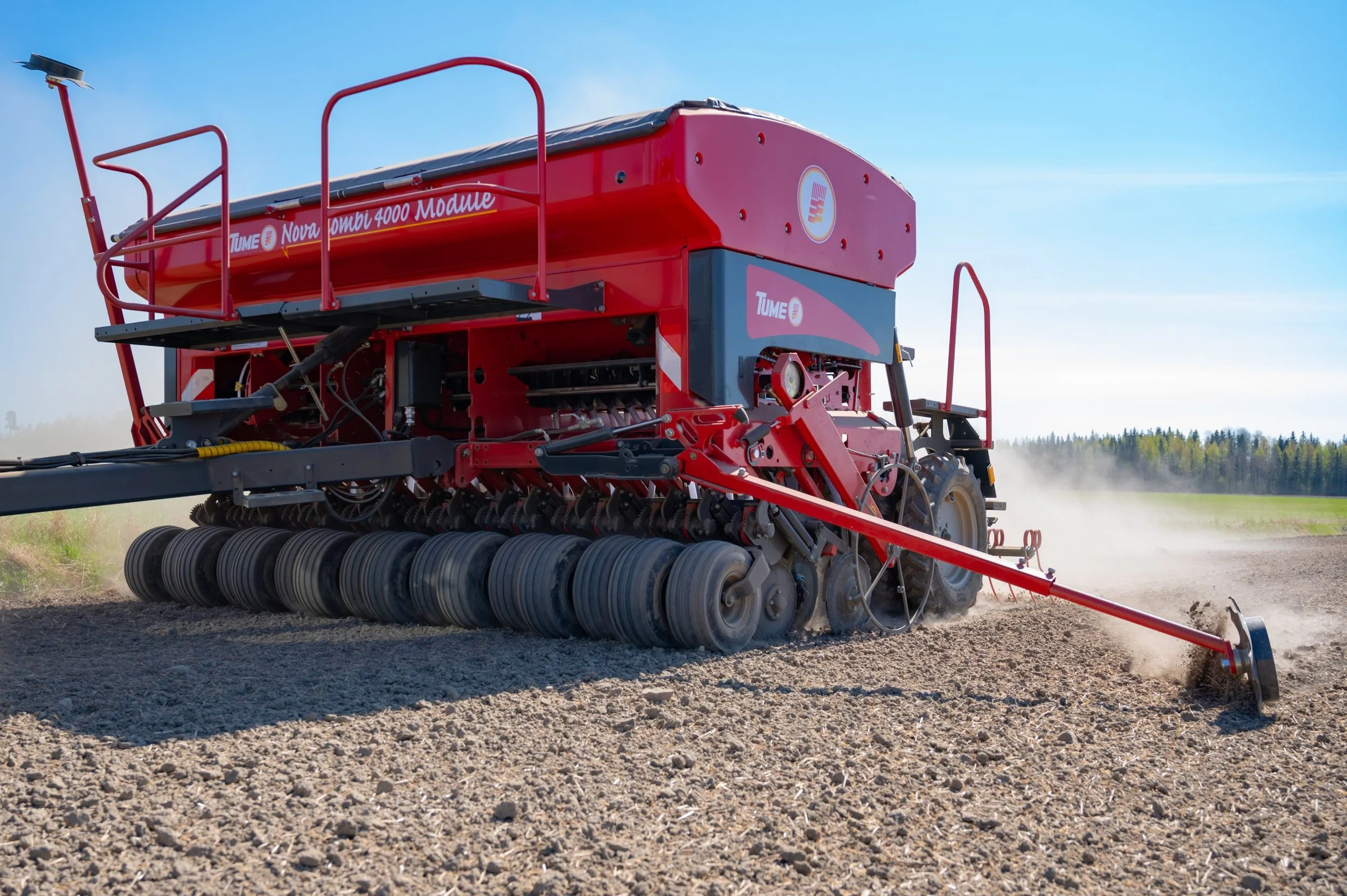

Tume Nova Combi Precision Seed Drills

Precision seed and fertiliser placement designed to maximise crop establishment, improve efficiency and deliver consistent results across Australian farming conditions.

Compare Models ➜
☎ Talk to Will

Better Crop Establishment Starts With Better Seed Placement

Every crop has challenges. Here's how Tume Nova Combi helps solve them.

Sowing Windows often too small for best crop establishment

Large Hopper capacities plus sowing speeds up to 16km/hr

Nova Combi has a complete terrain following system solving this problem.

Uneven sowing depth due to undulation

Nova Combi seed drills apply up to 200kg downward force per disc gang

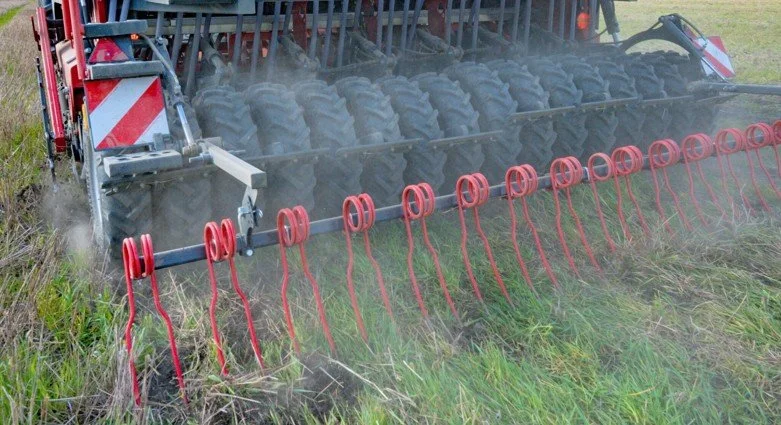

Difficulties handling Trash / existing pastures

Nova Combi has 1 Metering wheel per seed and Fertiliser boot.

Poor seed row spacing

Tume will roll over rocks or purchase a Kivi Pekka Stone Picker.

Have a rock problem

Engineered for Precision.

Built Strong. Built Better.

Disc Coulters

  • Split sowing Seed & Fert

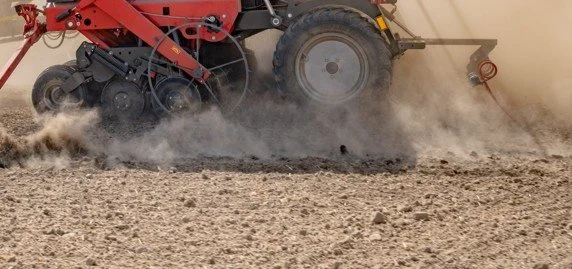

  • Sow into cultivated or tough ground

  • Each coulter fed from individual metering rollers

  • Sowing Rates down to 0.5kg/ha

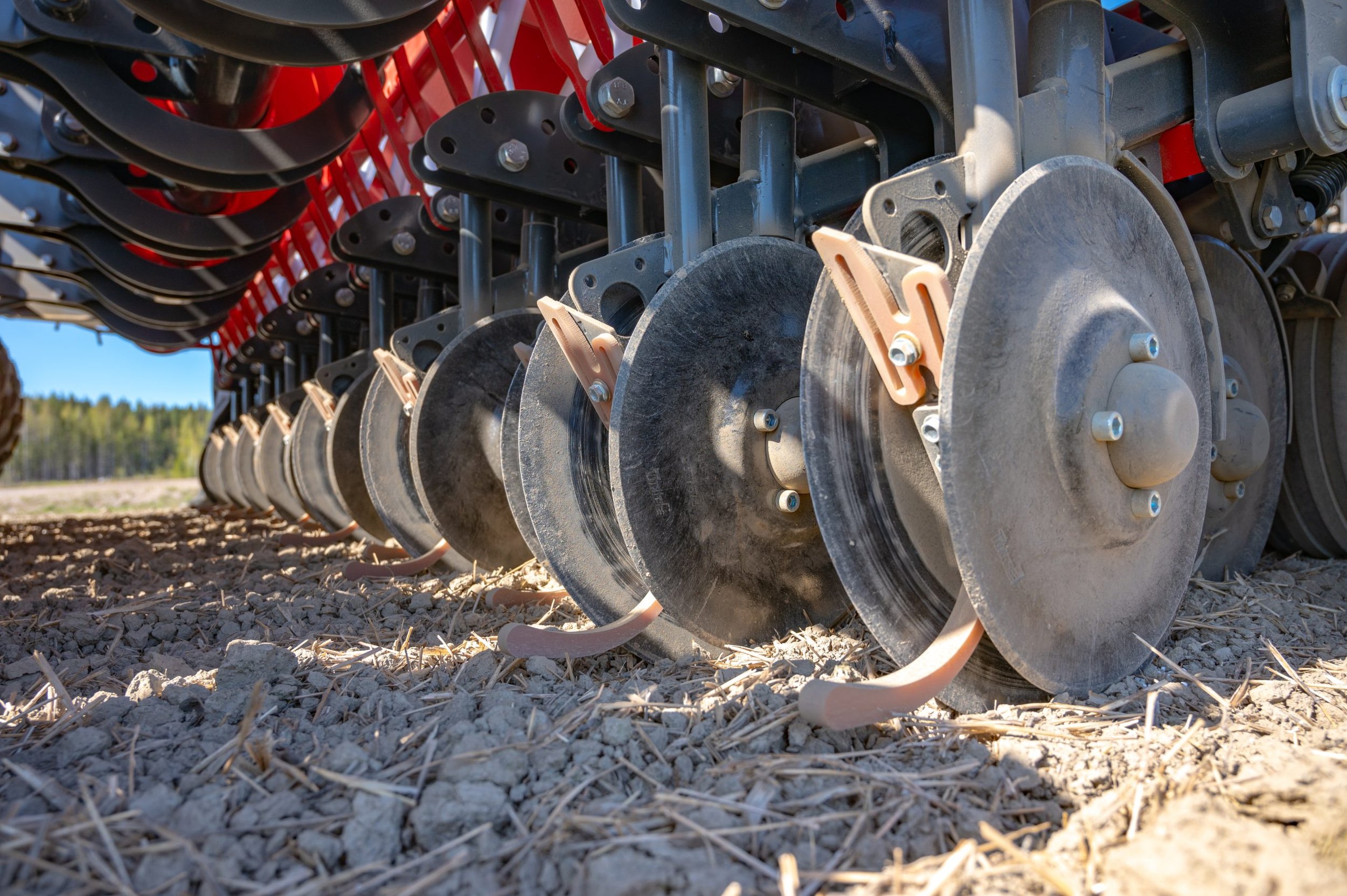

Nova Combi Disc Coulters in engaged position

Depth Control Wheels

  • Heavy Duty Tyres

  • Excellent depth control (front position)

  • Compact cultivated soil before contact with discs

  • Excellent Contour following

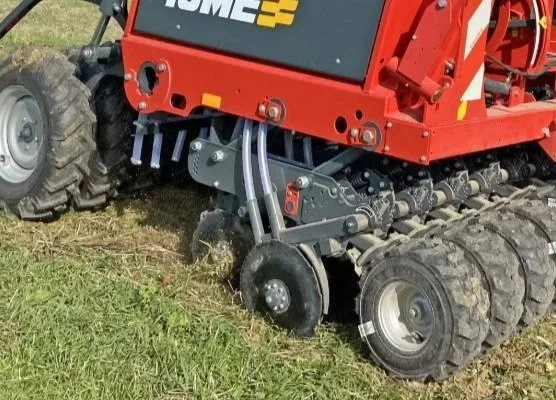

Nova Combi depth control wheels that control seeding depth and terrain contour control heavy duty

Ground Engaging

  • 40-200 Kg weight per coulter

  • Excellent Trash handling

  • Roll loose soil before seed/fert displacement

  • Pressure Adjust on the move - match paddock conditions

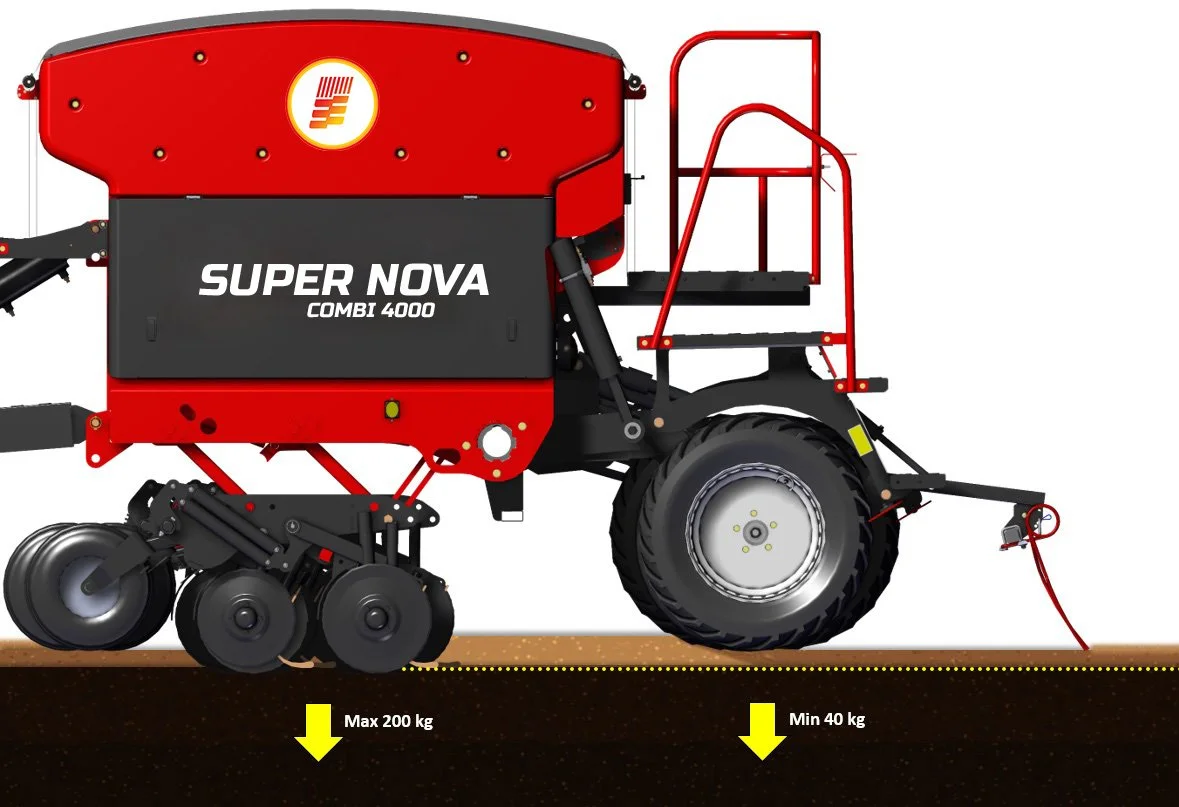

Nova Combi coulter pressure 40-120kg per coulter gang

Seed / Fert Metering Drive

  • Large Metering Wheel

  • Ground Engaging

  • Simple and very reliable

  • Accurate control to individual metering rollers.

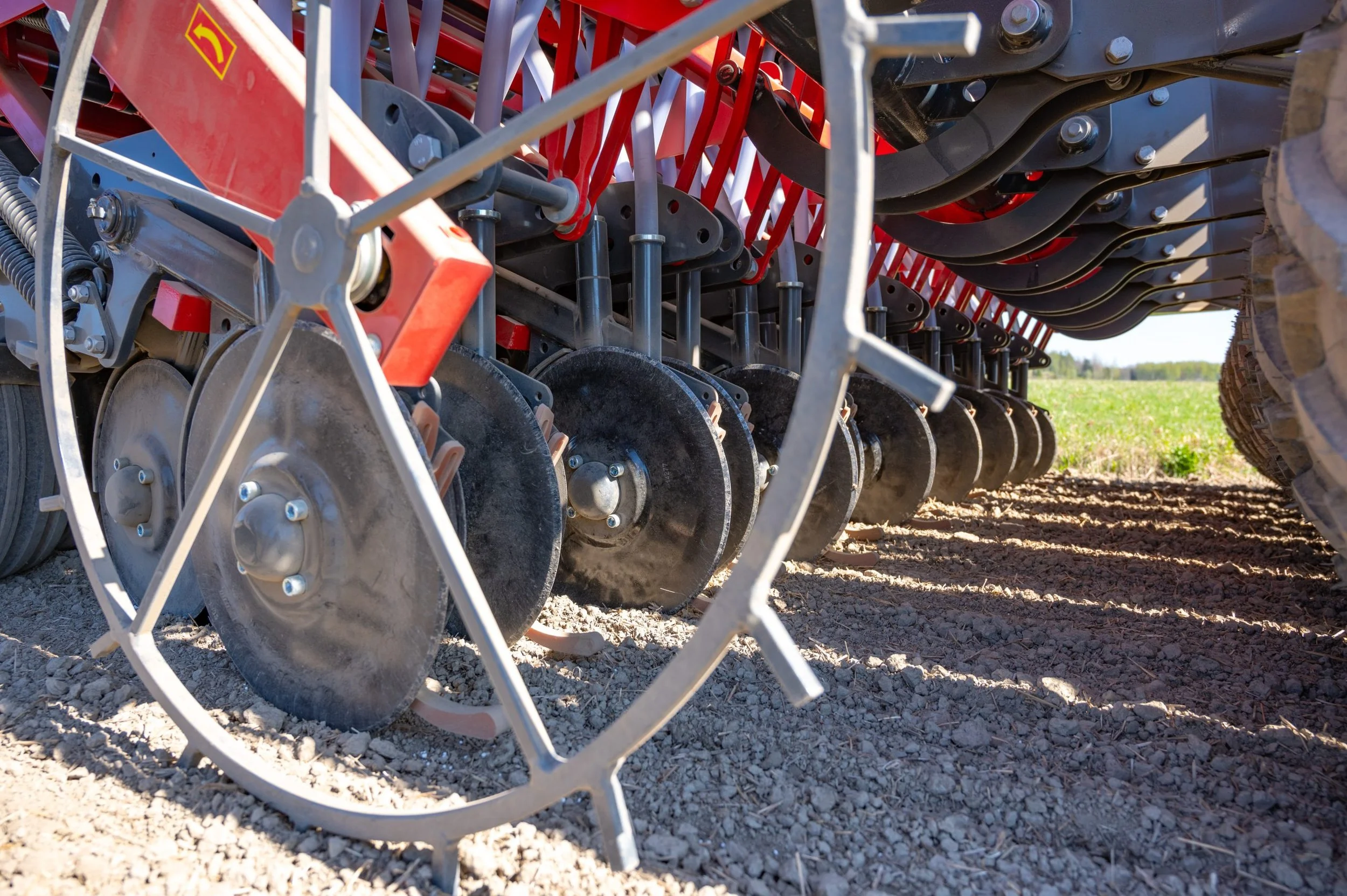

Nova Combi Metering Drive assembly with ground engaging wheel

Seed / Fert Hoppers

  • NC 3m = 4,000L. NC 4m = 5,500L

  • Adjustable divider Seed / Fert bins.

  • Easy filling and easy clean out.

  • No bridging - large tank shape.

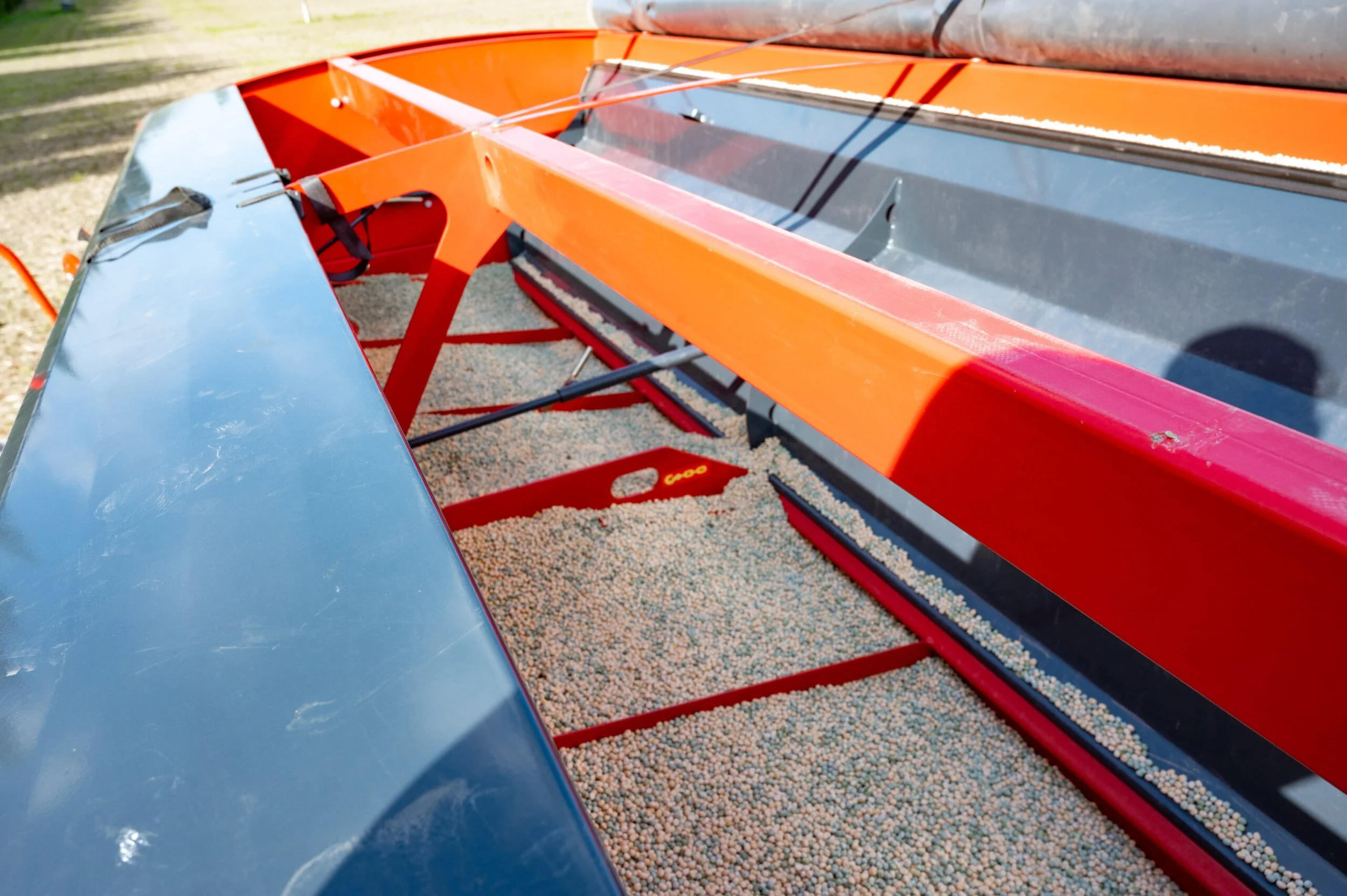

Nova Combi Seed & Fert hoppers with adjustable bin divider

Rear Rollers

  • Used for both paddock rolling and transport

  • Complete sowing conditions with excellent soil/seed contact.

  • Large diameter for excellent rolling (7.50 × 16)

  • Rear harrows - optional

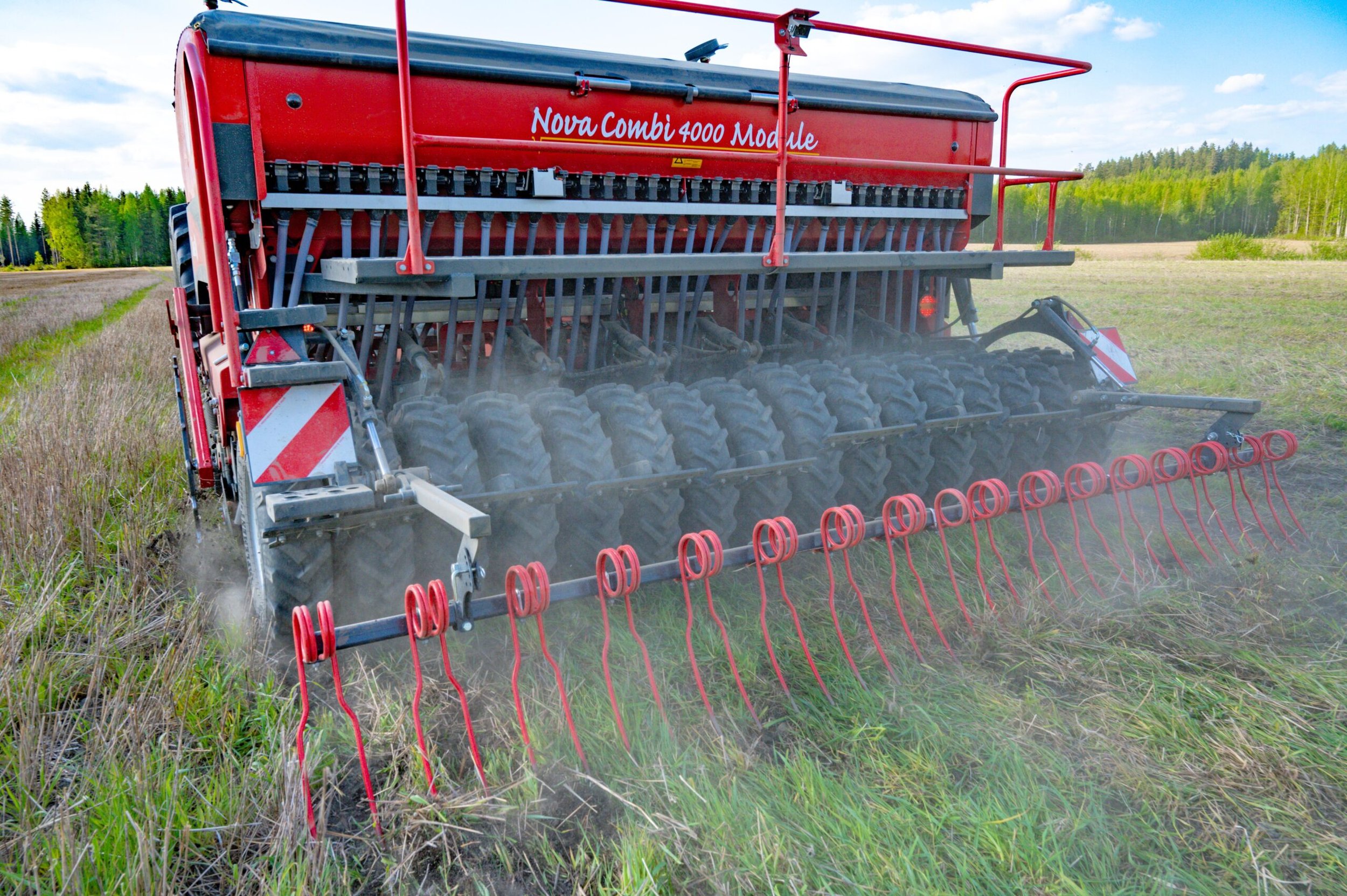

Nova Combi Rear pressure and roller wheels with rear harrow optional kit

Seed / Fert Adjustments

  • Simple Setup for Seed & Fert

  • Simple and accurate calibration system

  • Mechanical or electrical options for calibration and metering

  • Reliable & accurate setup

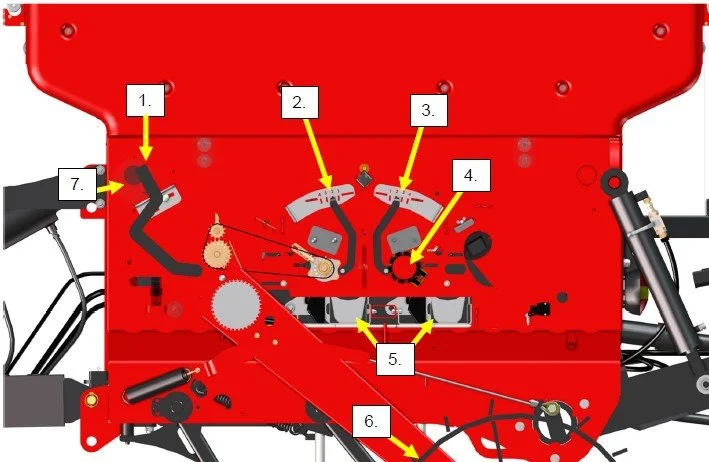

Nova Combi Seed & Fert Adjustment assembly

Coulter Spring Tensions

  • Separate springs for Pressure and for stone protection

  • Tension adjustment

  • Safety mechanism for longetivity

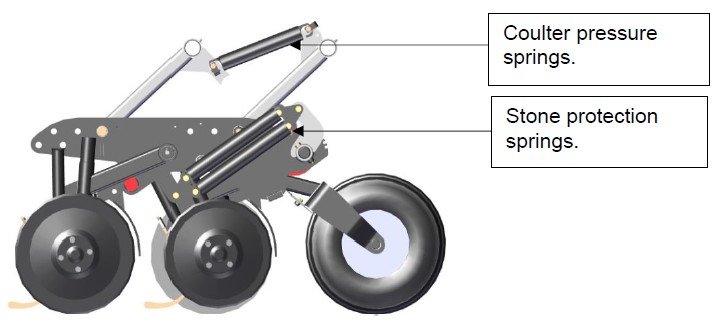

Nova Combi Coulter Springs for ground engaging pressure & stone protection

TC Controller

  • 3 x Seed Drill Control options:

    • Full Mechanical

    • Mechanical with Electronics

    • Full Electronic Powered

      NOTE: See below comparison

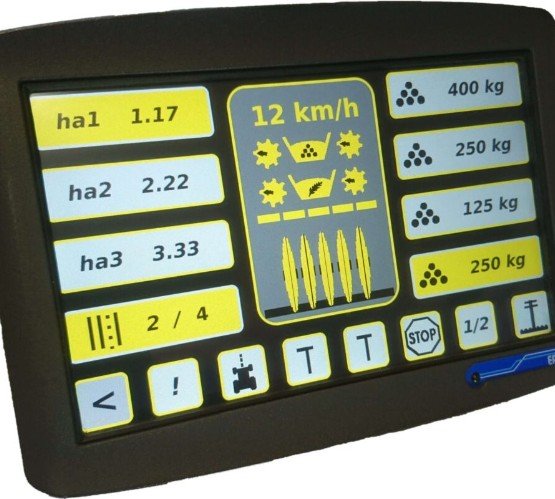

Nova Combi TC Controller monitor

Tume Nova Combi disc drills are engineered for Precision.

Choose the Level of Control that Suits Your Farming Operation

Nova Combi has 3 x technology control options for all Seed Drill models

Nova Combi - NO Electronics

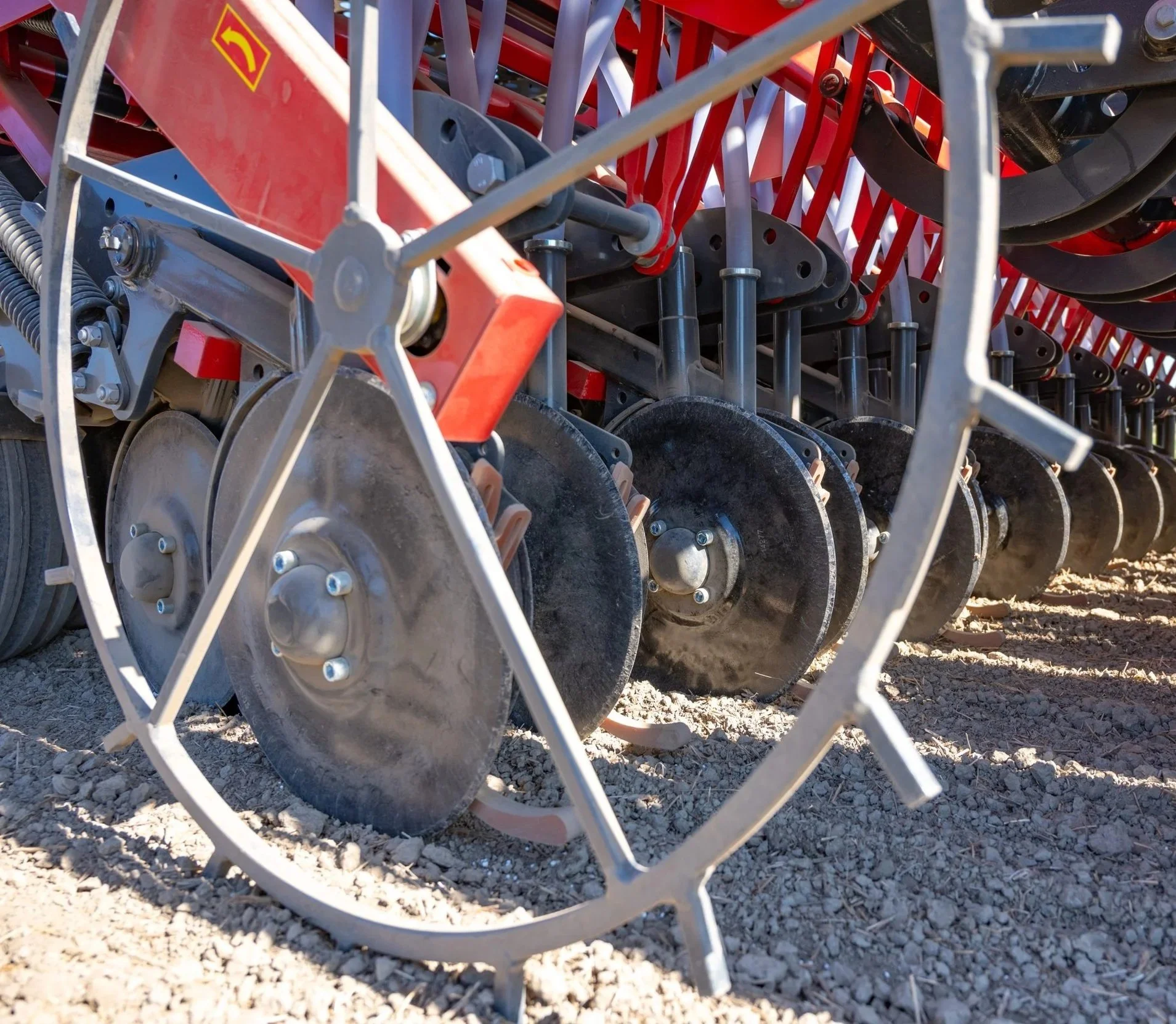

Nova Combi Full Mechanical control system

Mechanical Nova Combi

  • Ground Wheel Driven feeding system

  • Only electrics is work lights

  • Manual Coulter Pressure adjust

  • Mechanical Seed / Fert rate adjustment

  • No hopper level indicator

  • No shaft speed monitoring

Nova Combi - Mechanical with Electronics

Nova Combi TC Controller for electronic control on a mechanical seed drill

Mechanical Nova Combi With Electronics

  • Ground Wheel Driven feeding system

  • Equipped with ISO-BUS ECU (can connect to Tractor with ISO-BUS cable & Terminal)

  • 6 x Area Meters

  • Electronic Hopper level indicators

  • Electronic Shaft Speed Monitoring

  • Electronic Coulter Pressure Adjustment

    Electric Work Lights

  • Electronic Seed / Fert rate adjustment (from cabin)

Super Nova Combi - Full Electronic Powered

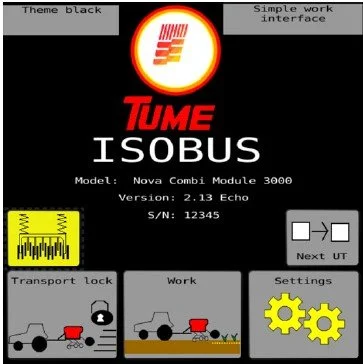

Nova Combi ISO-BUS control terminal with Section Control

Full Electronic Control & Monitoring

  • Electronic Powered feeding system

  • Electronic Calibration (Button)

  • Equipped with ISO-BUS ECU (can connect to Tractor with ISO-BUS cable & Terminal)

  • 6 x Area Meters

  • Electronic Hopper level indicators

  • Electronic Shaft Speed Monitoring

  • Electronic Coulter Pressure Adjustment

    Electric Work Lights

  • Electronic Seed / Fert rate adjustment (from cabin)

  • Section Control (2 x sections)

  • Variable Rate application

From Simple Mechanical Control to Full ISOBUS Integration

📹 See It Working

Which Model is Right For You?

Model Nova Combi 3000 Nova Combi 4000
Working width (m) 3 m 4 m
Hopper Capacity (L) 4,020 L 5,570 L
Seed (Min / Max) 1,545 L / 2,475 L 2,140 L / 3,430 L
Fertiliser (Min / Max) 1,545 L / 2,475 L 2,140 L / 3,430 L
Weight (Dry / Full) 4,300 Kg / 7,300 Kg 5,600 Kg / 10,650 Kg
Dimensions (height / Width) 2,400 mm / 2,980 mm  2,400 mm / 3,980 mm
Depth Wheels 18.5 x 8.50-8 18.5 x 8.50-8
Rear Wheels 7.50-16 7.50-16
Coulter Pressure (kg) 40 - 220 Kg 40 - 220 Kg
Total Coulters 24 32
Row Spacing (mm) 125mm or 167mm 125 mm or 167mm
ISO-BUS Compatibility Optional Optional
Electronic Remote Control (Seed / Fert) Optional  Optional
TC Controller Terminal Optional  Optional
Power Requirement 90 hp / 66 Kw 120hp / 88Kw

Not sure which model suits your operation? I'd be happy to help you choose the right machine.

Download Brochure ➜

What Owners Say

"Accurate, Easy and very reliable"

Andrew Hoopell
Tume Nova Combi 3m | Farmer | Malmsbury VIC

Andrew purchased the Tume Nova Combi 3m Seed Drill 5 years ago and has used it for his livestock operation improving pastures and incorporating and pasture hay crops.

Read Their Story ➜

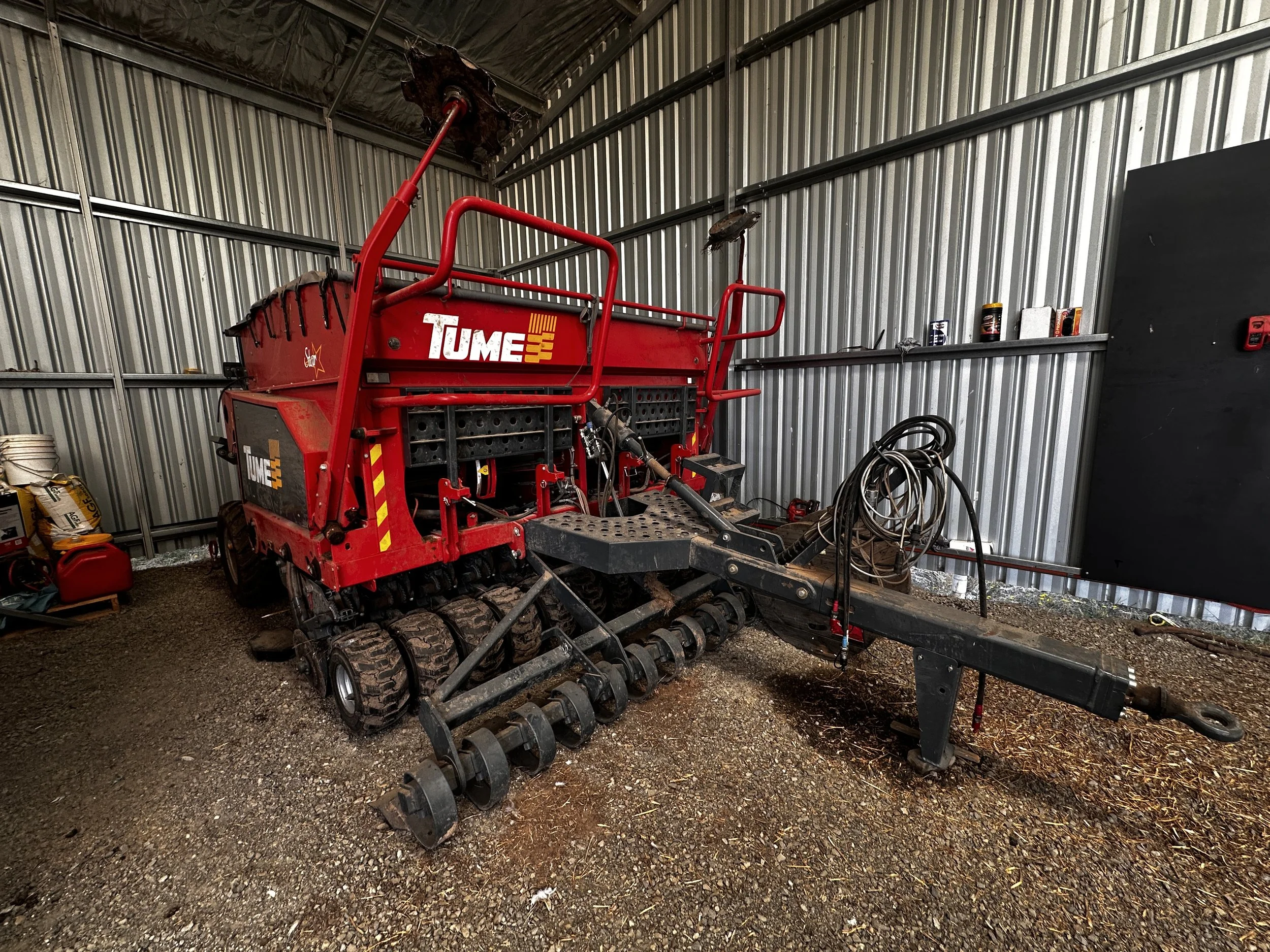

Nova Combi Disc Drill owned by Andrew Hoopell.

Frequently Asked Questions

What crops can I sow?

You can grow cereal, pasture, pulse, legume and large seed crops such as corn and soy bean. Sowing rates start at 0.5 kg/ha.

How accurate is seed depth placement?

Very. Due to the front guide wheels rolling the soil in front of the seed coulters, they will follow the terrain and maintain a consistent seed depth across the full width of the 3m or 4m Nova Combi Seed Drills.

Is seed and fertiliser distributed through the same boot?

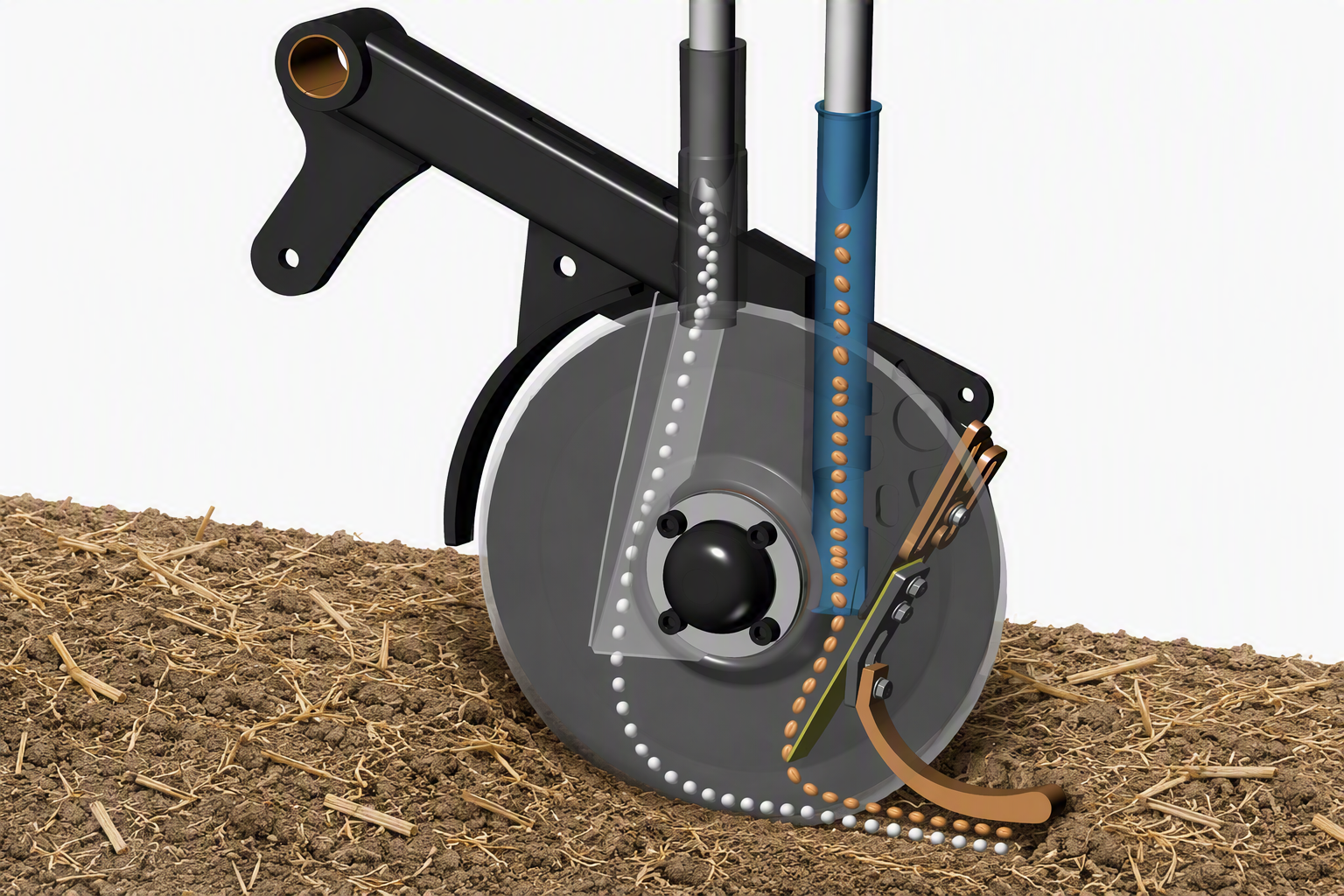

No, the seed and fertiliser are distributed through separate seed boots and are even placed at different heights in the soil. The fertiliser is distributed lower than the see allowing for the roots of the germinated seeds to access the fertilised soils below the seeds.

How accurate is the seed distributed along the rows?

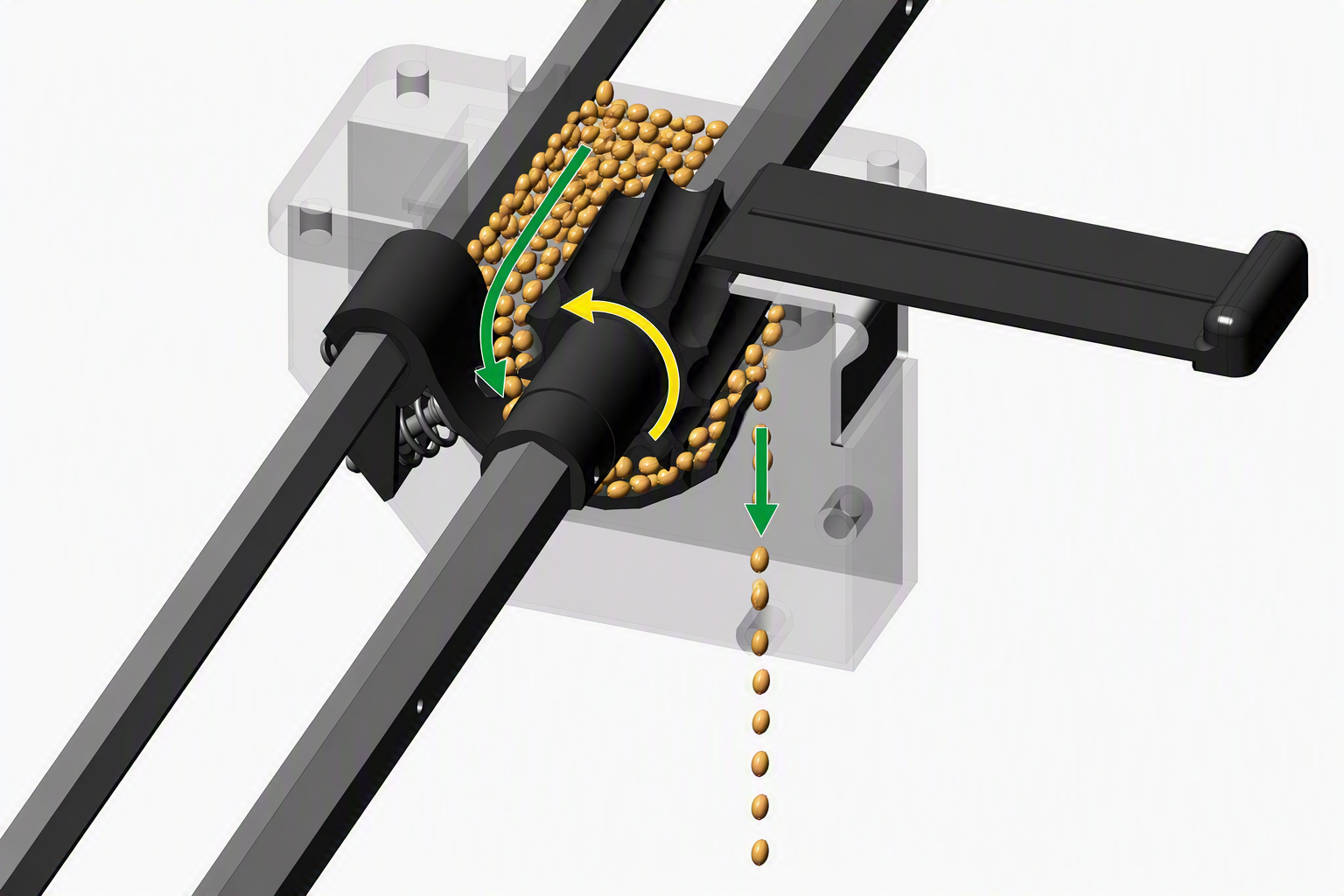

Each seed boot received seed from an individual metering roller (gravity fed) which is driven off a ground engaged wheel. This is a simple and very reliable system to ensure ultimate seed accuracy along the rows. The full Section control machines have a 2 x section setup allowing for more accurate seed placement along the rows when sowing along contours. Watch the video above for a demonstration.

What backup support is provided?

KIVI-PEKKA Australia provides direct parts, technical support and customer assistance nationwide. We provide after hours support. If you have a question, require support or want to find out more about the Stone Pickers, please call Will on 0439 553 225.

What tractor size is required?

The 3m Nova Combi requires 90hp minimum and the 4m Nova Combi requires 120hp minimum.

Can I speak to an existing owner?

Yes. We are happy to connect prospective buyers with existing Tume owners. We will match you with a current owner who has years of experience so you get the best feedback from someone first hand who has ample experience with our Stone Pickers.

Let’s Talk About Your Cropping Program

Every farm is different.

I’d be happy to discuss your operation and help determine which Nova Combi model best suits your business.
