Kivi Pekka 3

Kivi-Pekka 3.3

Affordable, wide pickup, large capacity

Green and gray robotic agricultural machine with large tires and multiple attachment arms.

Kivi-Pekka 4

Cost Effective, undulating terrain, power house

Green agricultural machine with large rubber tires and attached tines, used for planting or soil cultivation.

Kivi-Pekka 5

Perfect All-Rounder, increased rock size

Green agricultural robot with wheels and attached tilling or planting tools.

Kivi-Pekka 6

Increased capacity, bigger rocks, high performer

Agricultural robot with large wheels and attachment for grooming or harvesting crops, painted in green and gray.

Kivi-Pekka 7

Contractor’s Machine, maximum efficiency

⚙️ HYDRAULIC OR PTO DRIVE FOR ALL MODELS ⚙️

KIVI-PEKKA 3.3

3.3m Working Width | 35cm Max Stone size | 60hp Power Requirement | 20L/min Required Hydraulic Flow | 900 kg/min Output

A large green and gray agricultural machine, likely a seed or fertilizer spreader, with large black tires, labeled 'KULLI-REKKA' on the side.

  • KIVI-PEKKA 3.3 – Compact Size, Serious Performance

    The KIVI-PEKKA 3.3 is the latest and most compact addition to the KIVI-PEKKA stone picker lineup. Designed not only for traditional farming but also for specialty cultivation and landscaping, it offers exceptional performance in a smaller footprint. Efficient, easy to operate, transport, and maintain — this machine delivers big results without the bulk.

    Impressive Capacity in a Compact Package

    Featuring a 2-meter-wide lifting drum and a 5 m³ stone hopper, the KIVI-PEKKA 3.3 handles stones up to 35 cm in diameter with ease. Dual s-spike rotors guide stones toward the center, maximizing pickup efficiency across the full 3.3 m working width. It’s capable of collecting up to 900 kg of stone per minute — a leader in its class.

    Low Power Requirement, High Agility

    With a drawbar weight under 1,000 kg, the 3.3 model can be pulled by a 60 hp tractor with a single-acting hydraulic output. Its drawbar-mounted design allows for tight turning, precise working depth control, and ease of use in confined areas. A tipping height of 2.1 meters enables easy unloading into trucks or trailers using just one hydraulic outlet. Its low, stable structure ensures safe operation, even on uneven terrain.

    Clean Results Every Time

    Like its larger siblings, the KIVI-PEKKA 3.3 features an integrated soil separation system that reduces soil content in the stone heaps — improving efficiency and leaving your fields cleaner.

    • Drive Hydraulic or PTO

    • Weight 3490 kg

    • Working width 330 cm

    • Stone size 2.5–35 cm

    • Output 900 kg/min

    • Stone hopper capacity 5 m³

    • Tyre size 380/85×24

    • Power requirement 60 hp

    • Hydraulics 20 L oil/min (PTO Drive) 60L/min (Hydraulic Drive)

    • Running speed 1–6 km/h

    • Lifting drum tines 53 pcs

    • Tipping height 210 cm

  • Standard accessories

    • Hydraulic or PTO Drive

    • Spring tine feed Rotor

    • Soil container

    • Drawbar mounting

    • Sieve (in cultivation direction)

    • Tipping height 210 cm

    • Straight belts for lifting drum transmission

    • Robust rake pivots

    • Strong tines 12×45

    • Wheels 380/85×24

A green tractor with a seed spreader attachment working on a dirt field, with a forest of trees and a cloudy sky in the background.
A tractor on a farm field attached to a green equipment labeled 'Kivi-Pekka' and 'Pel-Tuote', with a background of trees and cloudy sky.
A tractor connected to a green seed drill in a field with a forest background.
A tractor attached to a green and black seed or fertilizer spreader on a dirt field with a forest in the background.
A modern agricultural sprayer machine with green and black color, on a farm field with trees in the background.
Close-up of a green and gray industrial machine working on dirt in an outdoor area, with a forest in the background.
Close-up of a green and gray agricultural seed planter on sandy soil, with the words 'KUIPEKKA' and 'PEL-TUOTE' written on it.
Green agricultural machine labeled PEL-TUOTE in a forested area.
A tractor with a green attachment working on a plowed field with dust rising, set against a backdrop of leafless and evergreen trees under a cloudy sky.
A green tractor with a red triangle symbol on the back is plowing a field, creating two deep tire tracks in the soil. In the background, there are trees and a cloudy sky.

KIVI-PEKKA 4

4m Working Width | 35cm Max Stone size | 70hp Power Requirement | 20L/min Required Hydraulic Flow | 700 kg/min Output

A green and gray agricultural machine with large black tires and metal components, used for planting or seeding in fields.

  • A Proven Powerhouse – Reliable, Efficient, and Built to Perform

    The original KIVI-PEKKA model remains a trusted workhorse in the field. Compact yet powerful, it's ideal for both owner-operators and contractors looking for a cost-effective solution without compromising on performance. As the foundation of the KIVI-PEKKA family, this dependable machine continues to evolve — delivering smart design, solid results, and the same rugged reliability the brand is known for.

    • Drive Hydraulic or PTO

    • Weight 4300 kg

    • Working width 400 cm

    • Stone size 2,5 – 35 cm

    • Output 700 kg/min

    • Stone hopper volume 3 m³

    • Tyre size 560/60-22.5

    • Power requirement 70 hp

    • Hydraulics 20 L oil/min (PTO Drive) 60L/min (Hydraulic Drive)

    •  Running speed 1 – 6 km/h

    • Lifting drum tines 18 pcs

    • Tipping height 290 cm

  • Standard accessories:

    • Hydraulic or PTO Drive

    • Hydraulic rake lift

    • Soil container

    • Trailer coupling

    • All PTO shafts

    • Hydraulic working depth adjustment

    • Sieve (in cultivation direction)

    • Walking tandems on rakes

    • Parts box

    • Tipping height 290 cm

    • Straight belts for lifting drum transmission

    • Strong tines 12×45

    • Robust rake pivots

    • Tyres 560/60×22.5

    Optional accessories:

    • ISOBUS control

    • Rotation guard

    • Pneumatic brakes

    • 1-circuit hydraulic brakes

    • Ball coupling

    • Working level indicator

    • Tyre options

      • 710/45×22.5.

      • 700/50R26.5

      • bogie 500/50×17

      • bogie 500/50×20

A tractor pulling a green seed drill on a plowed field with a forest in the background during daytime.
A tractor pulling a lime green Kivi-Pekka stone crusher working on a tilled field with dirt flying, surrounded by trees under a blue sky.
A green and black construction vehicle, possibly a street sweeper or similar machine, attached to a tractor on a paved outdoor area with trees in the background under a clear blue sky.
Close-up view of the mechanical tines of a piece of agricultural equipment, possibly a rotary cutter or mower, showing metal tines and parts under the machine.
Close-up of a large agricultural machine with a gray metal blade and a green riding area, set against a blue sky and some trees in the background.
Close-up of a green machine with the text "KIVI-PEKKKA HARD AS STONE" on it, against a partly cloudy sky.
Close-up of a green tractor tilling dry, rocky soil, dust and small rocks being displaced as it works; clear blue sky and trees in the background.

KIVI-PEKKA 5

5m Working Width | 50cm Max Stone size | 80hp Power Requirement | 20L/min Required Hydraulic Flow | 1,000 kg/min Output

Green agricultural planting machine with large tires and mechanical arms.

  • Long-time favourite. Unrivalled efficiency. Designed for extremely challenging conditions.

    • Drita Hydraulic or PTO

    • Weight 5300 kg

    • Working width 500 cm

    • Stone size 2.5–35 cm (with Flex Drum 50 cm)

    • Output 1000 kg/min

    • Stone hopper capacity 3 m³

    • Tyre size 560/60×22.5

    • Power requirement 80 hp

    • Hydraulics 20 L oil/min (PTO Drive) 60L/min (Hydraulic Drive)

    • Running speed 1–6 km/h

    • Lifting drum tines 28 pcs

    • Tipping height 290 cm

  • Standard accessories

    • Hydraulic or PTO Drive

    • Hydraulic rotor lift

    • Soil container

    • Trailer coupling

    • Tyres 560/60×22.5

    • All PTO shafts

    • Hydraulic working depth adjustment

    • Sieve (in cultivation direction)

    • Walking tandems on rakes

    • Tool and spare parts box

    • Tipping height 290 cm

    • Straight belts for lifting drum transmission

    • Robust rake pivots

    • Strong tines 12×45

    Optional accessories

    • ISOBUS control

    • Flex Drum with extra-strong tines 13×50

    • Rotation guard

    • Pneumatic brakes

    • 1-circuit hydraulic brakes

    • Ball coupling

    • Working level indicator

    • Tyre options

      • 710/45×22.5

      • 700/50R26.5

      • bogie 500/50×17

      • bogie 500/50×20

Close-up of the undercarriage of a metal agricultural or industrial machine with black metal hooks and components.
Close-up of agricultural machinery components with hydraulic hoses, a black spherical tank, and warning labels, under a blue sky.
Close-up of a bright green tractor with black tires and metallic mechanical parts, set against a blue sky with some clouds.
Green tire recycling container with the words 'KIVI-PEKKA, HARD AS STONE' written on it, against a sky with clouds.
Construction machinery with green and gray parts, hoses, and mechanical components, situated outdoors on a wet surface under a blue sky.
Close-up of a piece of industrial or agricultural equipment with green and gray components, hydraulic hoses, and large black tires, set outdoors with a blue sky and trees in the background.
A large green agricultural machine attached to a tractor, with large tires and mechanical parts, on a wet outdoor surface under a blue sky.
A green and black agricultural tractor with large tires, attached to a green equipment with the label 'KIVI-PEKKÄ' and the website 'pel-tuote.fi', on a paved surface under a blue sky.
A tractor with a green attachment working on a farmland field under a clear blue sky.

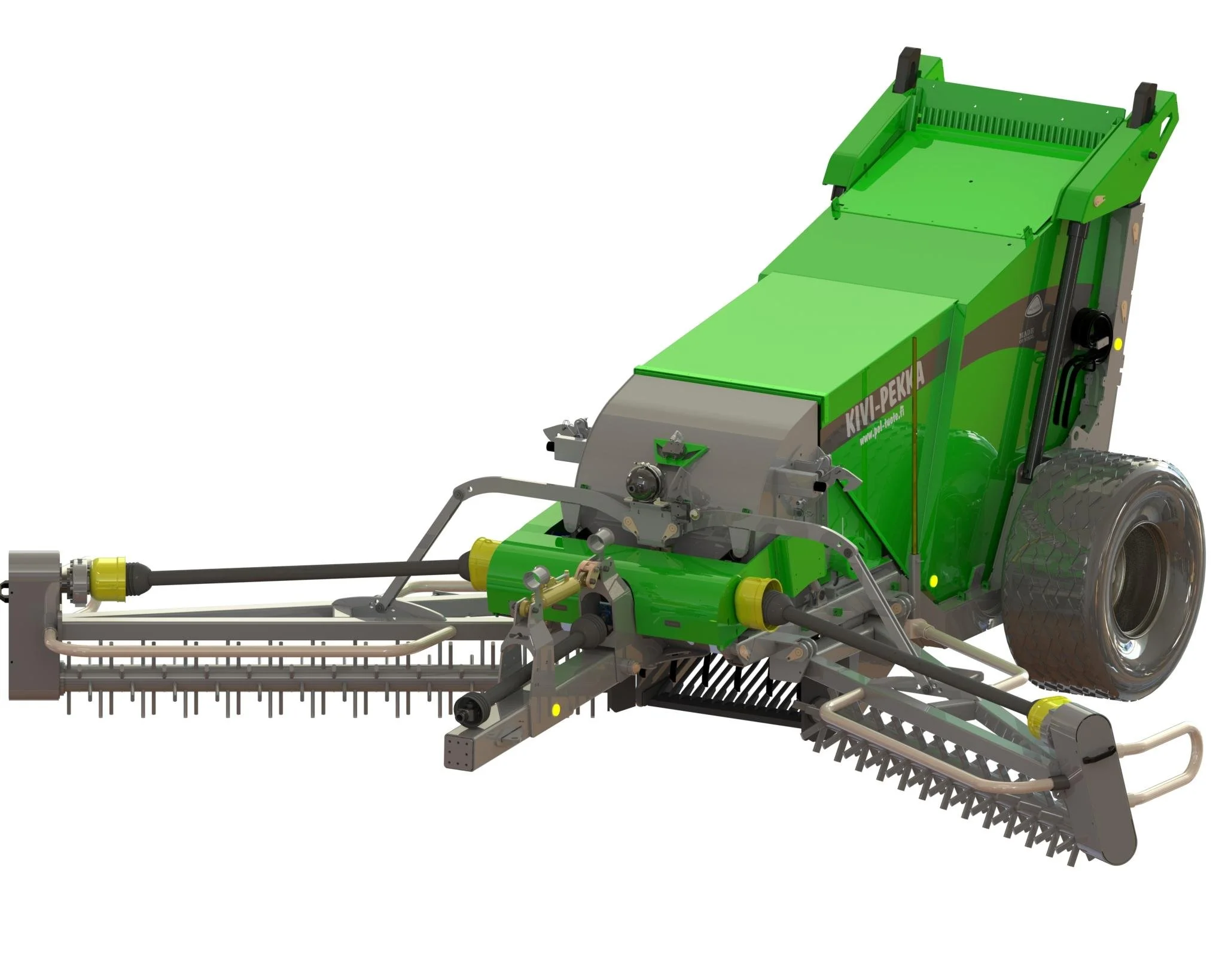

KIVI-PEKKA 6

6m Working Width | 50cm Max Stone size | 80hp Power Requirement | 20L/min Required Hydraulic Flow | 1,200 kg/min Output

Green and gray agricultural machine with large tires, labeled 'KIVI-PEKKA', used for harvesting or processing crops.

  • Ideal solution for large areas. Efficiency and impressive working width that are suited for contract works and demanding applications.

    • Drive Hydraulic or PTO

    • Weight 5400 kg

    • Working width 600 cm

    • Stone size 2.5–35 cm (with Flex Drum 50 cm)

    • Output 1200 kg/min (2

    • Stone hopper capacity 3 m³

    • Tyre size 560/60×22.5

    •  Power requirement 80 hp

    • Hydraulics 20 L oil/min (PTO Drive) 60L/min (Hydraulic Drive)

    • Running speed 1–6 km/h

    • Lifting drum tines 28 pcs

    • Tipping height 290 cm

  • Standard accessories

    • Hydraulic or PTO Drive

    • Hydraulic rotor lift

    • Soil container

    • Trailer coupling

    • All PTO shafts

    • Hydraulic working depth adjustment

    • Sieve (in cultivation direction)

    • Walking tandems on rakes

    • Tool and spare parts box

    • Tipping height 290 cm

    • Straight belts for lifting drum transmission

    • Robust rake pivots

    • Tyres 560/60×22.5

    • Strong tines 12×45

    Optional accessories

    • ISOBUS control

    • Flex Drum with extra-strong tines 13×50

    • Rotation guard

    • Pneumatic brakes

    • 1-circuit hydraulic brakes

    • Ball coupling

    • Working level indicator

    • Tyre options

      • 710/45×22.5

      • 700/50R26.5

      • bogie 500/50×17

      • bogie 500/50×20

A green tractor with a seed planter attachment working on a large, flat, tilled field, with a dense green forest and blue sky with scattered clouds in the background.
A green tractor pulls a large implements in a field with a forest in the background under a partly cloudy sky.
Close-up of a piece of green industrial machinery with black and yellow hoses and various metal components, set against a blue sky background.

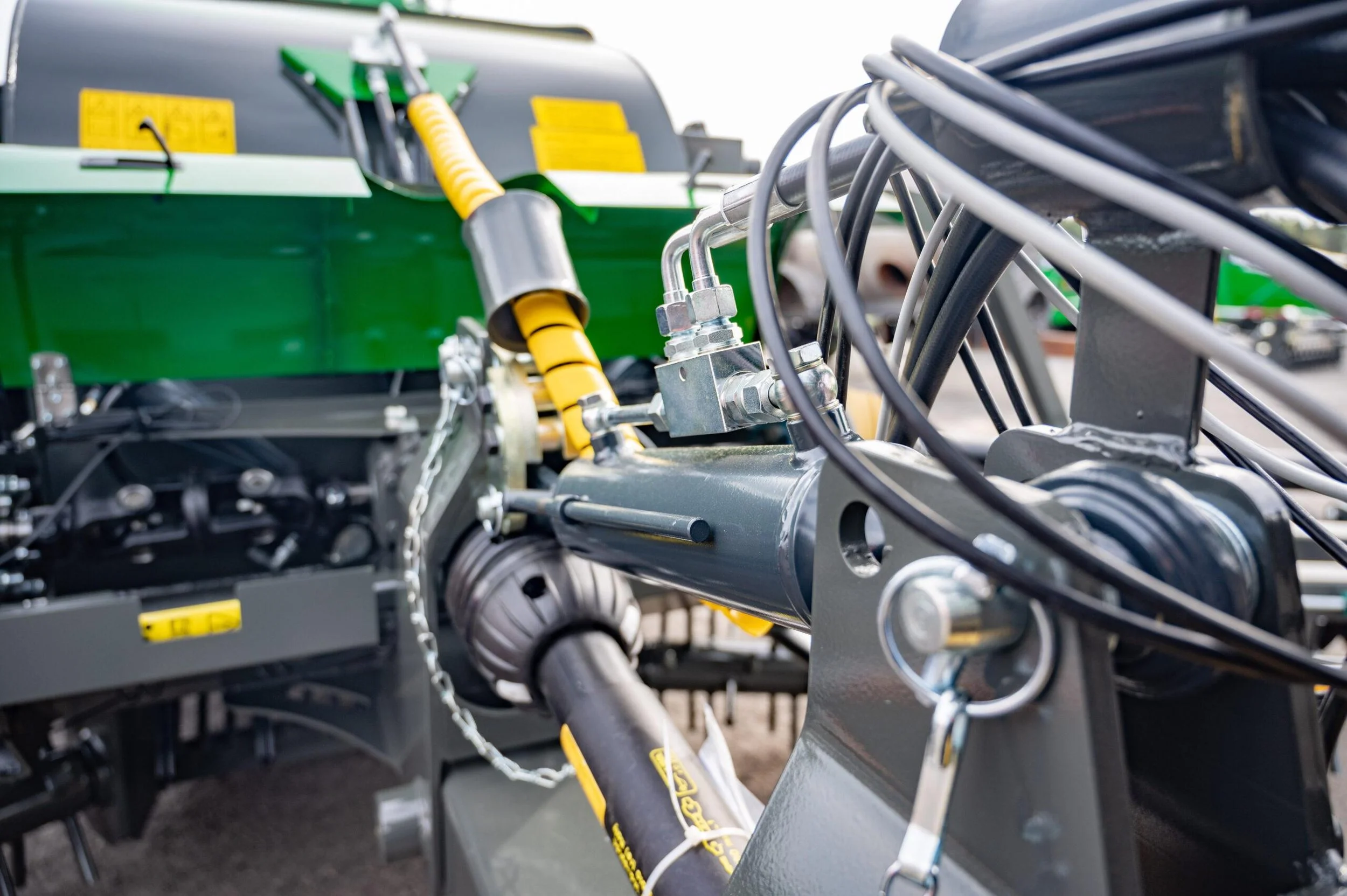

Close-up of hydraulic machinery components with hoses, metal fittings, and a green container in the background.
Close-up of a tractor's belt and pulley system with green and gray metal parts, black belt, and large tire visible in the background.
A green robotic farm vehicle with large tires in a field, with trees and a blue sky in the background.
A green agricultural machine attached to a tractor working on tilled soil in a field under a blue sky.
Close-up view of a tractor's tillage implement with multiple metal tines working the soil, with green fields and trees in the background.
A green and gray agricultural machine working in a farm field, with trees and a cloudy sky in the background.
A green agricultural machine attached to a tractor works in a field of soil, with blue sky and a few clouds in the background.

KIVI-PEKKA 7

7m Working Width | 50cm Max Stone size | 100hp Power Requirement | 20L/min Required Hydraulic Flow | 1,400 kg/min Output

Green and gray agricultural machine with large tires and metal tines for planting or tilling.

  • Maximum Efficiency. Built to Last.

    The KIVI-PEKKA 7 delivers outstanding performance across the board. With its wide lifting drum, it’s engineered to clear large areas quickly and efficiently. Backed by the largest stone hopper in the KIVI-PEKKA range, this machine combines high capacity with rugged durability — making it a true workhorse for demanding operations.

    • Drive Hydraulic or PTO

    • Weight 6540 kg (14 420 lbs)

    • Working width 700 cm

    • Max stone size  Flex Drum 3.5-50 cm

    • Output 1400 kg/min

    • Stone hopper capacity 5 m³

    • Tyre size with bogie 560/60×22.5

    • Power requirement 100 hp

    • Hydraulics 20 L oil/min (PTO Drive) 60L/min (Hydraulic Drive)

    • Running speed 1–6 km/h

    • Lifting drum tines 33 pcs

    • Tipping height 290 cm

  • Standard accessories

    • Hydraulic or PTO Drive

    • Flex Drum with extra-strong tines 13×50

    • Hydraulic rotor lift

    • Soil container

    • Trailer coupling

    • All PTO shafts

    • Hydraulic working depth adjustment

    • Sieve (in cultivation direction)

    • Walking tandems on rakes

    • Tool and spare parts box

    • Tipping height 290 cm

    • Straight belts for lifting drum transmission

    • Robust rake pivots

    • Tyre size 560/60×22.5 bogie

    Optional accessories

    • ISOBUS control

    • Rotation guard

    • Pneumatic brakes

    • 1-circuit hydraulic brakes

    • Ball coupling

    • Working level indicator

    • Tyre options

      • bogie 710/45×22.5

      • bogie 710/40×22.5

Close-up of a large industrial machine equipped with metal grates and a green and silver lever, with rocks placed on the gray floor underneath.
Close-up view of a green industrial agricultural machine, possibly a hay or crop harvester, with large tires and metal rotating blades on ground.
Close-up of the mechanical and hydraulic components of a piece of farming or industrial equipment, including shafts, joints, and hydraulic hoses.
Green and black tractor attached to a large green water tanker with the brand name 'KIVI-PEKKA' parked on a gravel surface near a body of water, with a forested background and a clear blue sky.
A large green and black agricultural machine attached to a tractor on a paved area, with trees and a streetlamp in the background under a clear blue sky.
Close-up of a green agricultural machine with black metal tines and hooks, outdoors near a body of water and trees.
Close-up of a green and black agricultural hay rake's tine arms and metal tines.
Green tractor with attached equipment parked on a paved surface near a body of water, with trees in the background.
A red tractor pulling a green agricultural machine on a plowed field with green trees and a blue sky in the background.
A tractor pulling a green soil preparation machine on a farm field under a partly cloudy sky.
A red tractor pulling a green soil processing machine on a farm field with a forest background under a blue sky.
A tractor working on a dirt field with a green tiller attachment, surrounded by a forest of trees under a blue sky.
Agricultural tractor control panel with electronic display and various control switches.
A green and black bulldozer grading a dirt road, kicking up dust and rocks in a rural outdoor setting with green trees and blue sky in the background.
A close-up of a piece of soil maintenance equipment attached to a green tractor, showing a rotating rake or tiller with a white arrow pointing to it, working on the ground.
Close-up of a farm rake implement with tines on dry plowed soil.

Rotors

Heavy-Duty Rotor Wings for Efficient Stone Windrowing

KIVI-PEKKA rotor wings are engineered with robust steel pegs welded through durable rotor cylinders, ensuring long-lasting performance in tough field conditions. The adjustable height feature allows the rotors to operate just below the soil surface, effectively guiding stones toward the central pickup assembly for optimal collection.

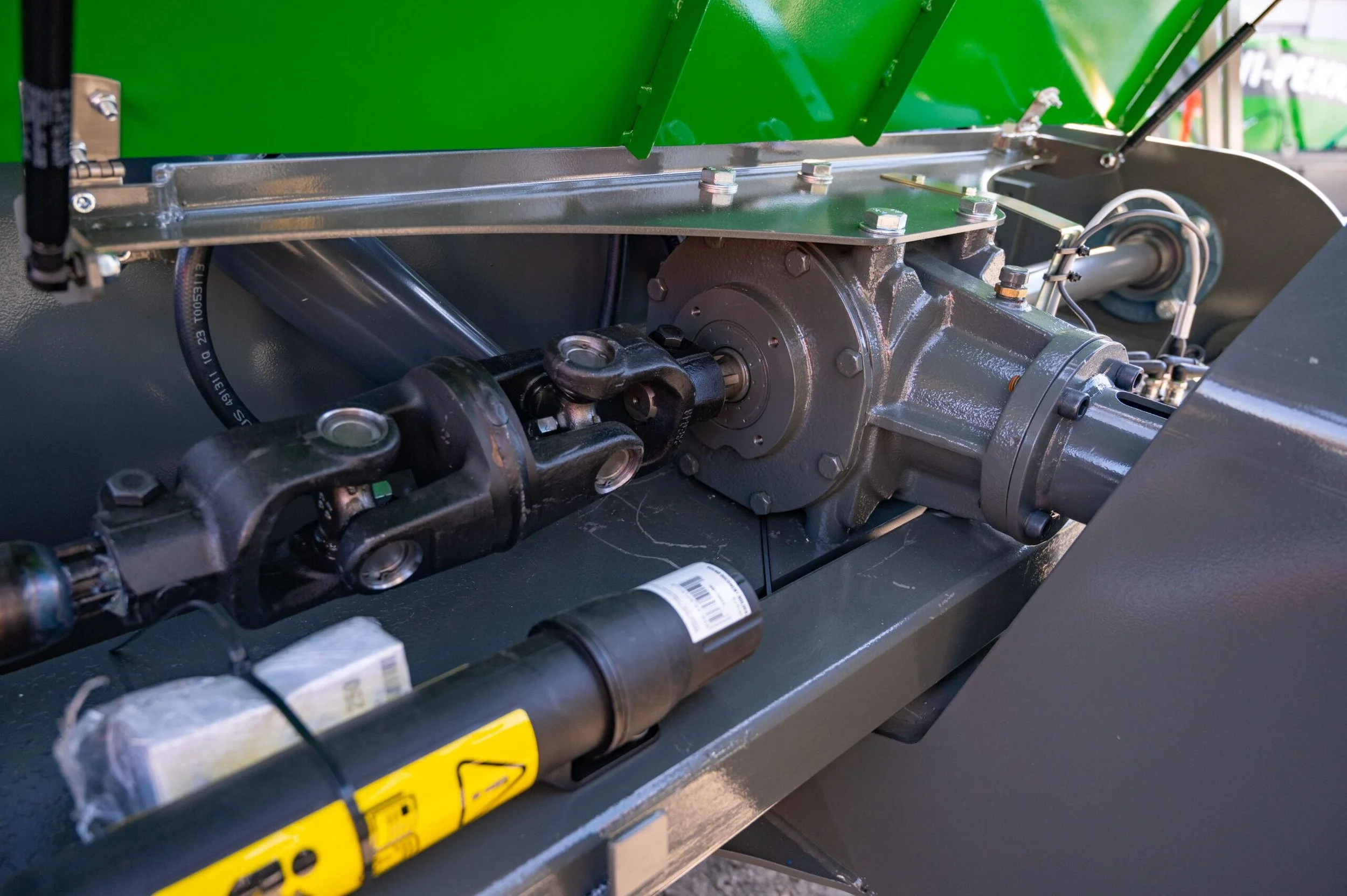

Driven by a PTO shaft and a triple-belt pulley system, the rotors feature a built-in fail-safe mechanism: the belts are designed to slip if the rotors encounter a reef rock or obstruction, preventing damage and minimizing downtime.

This simple yet highly effective system reliably windrows stones ranging in size from 2.5 cm to 50 cm, making it ideal for a wide range of field conditions.

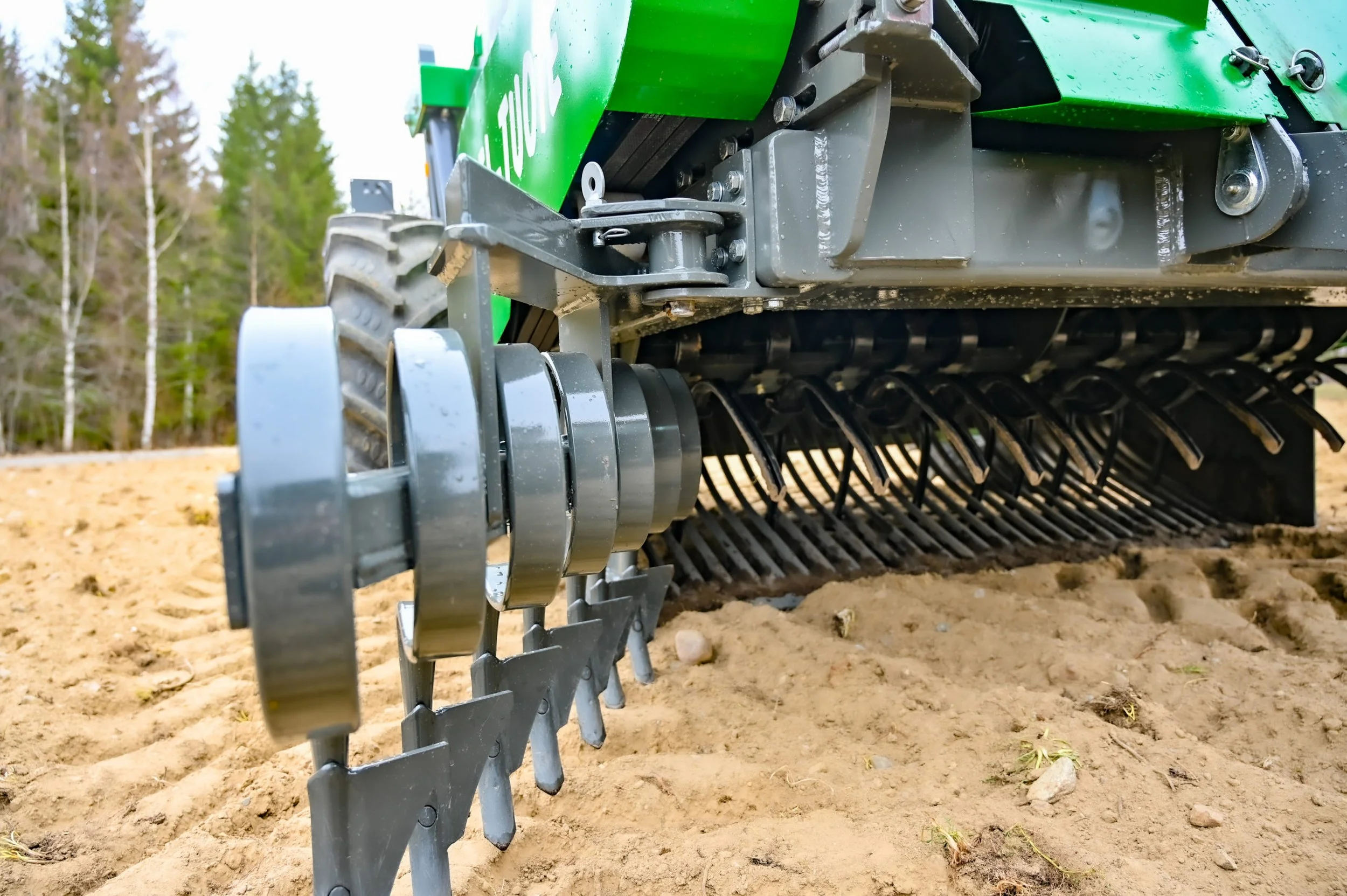

Flex Drum

Smart Flex Drum Design for Maximum Stone Handling Efficiency

The lifting drum's power transmission is integrated along the drum frame, allowing the entire unit to flex upward when encountering large obstacles—enabling it to lift stones up to 50 cm in diameter with ease. A hydraulic pressure accumulator ensures that the Flex Drum smoothly rides over large stones without causing impact damage.

For added convenience, the drum can be fully raised via the hydraulic system to clear any lodged stones quickly and efficiently. This eliminates the need for a reversing function, reducing downtime and simplifying operation.

The Flex Drum’s built-in suspension system protects the pickup sieve and tines from excessive wear caused by direct stone contact, significantly extending component life. With its flexible, forward-moving design, even large stones can be collected without stopping—boosting productivity in every pass.

A digital rendering of a construction machine crushing rocks and debris inside a green container.

Flex Drum Tines

Durable Flex Drum Tine System for Seamless Stone Collection

The KIVI-PEKKA Flex Drum Tines are engineered in three sizes—30 mm, 40 mm, and 50 mm—to precisely match the pickup sieve. Designed for performance, their flexible motion allows for efficient collection of stones ranging from 2.5 cm up to 50 cm in diameter, lifting and transferring them smoothly into the stone hopper.

Thanks to their multi-point engagement design, the system ensures reliable stone capture: if one tine glides over a large rock, subsequent tines engage and deliver it to the hopper. This intelligent design eliminates the need for a reversing mechanism, reducing mechanical complexity and increasing operational efficiency.

Featuring 13 high-strength tines per drum, the system delivers exceptional durability and extended service intervals. Each tine is supported by auxiliary springs and suspended with rubber buffers to absorb impact and protect the machine. Even in the event of tine breakage, the stone picker continues to operate effectively—minimizing downtime and maximizing productivity in the field.

Pickup Sieve

Heavy-Duty Welded Sieve for Efficient Stone Separation

The KIVI-PEKKA welded sieve is crafted from high-strength, special-alloy steel and is available in 30 mm, 40 mm, and 50 mm bar spacing to suit varying soil and stone conditions. Designed for durability and performance, the sieve allows the tines to run through the entire length of the bars, ensuring consistent cleaning action and preventing rocks from jamming.

Engineered for both cultivated and uneven terrain, the scoop can operate just below the soil surface—allowing it to lift and separate semi-buried stones with ease. This design enhances stone collection efficiency while minimizing soil disturbance, making it ideal for agricultural and landscaping applications.

Diagram of a farming attachment with labeled parts including two large tires, various green and gray mechanical components, and several numbered labels connected to different parts.
Close-up of an agricultural machine with dimensions and measurements for rock or debris removal, showing a cavity 15 cm deep, 50 cm wide, and a sensing distance of 15 cm.
Close-up view of mechanical parts with black metal bars, likely part of an industrial or agricultural machine, with sunlight visible through the gaps.

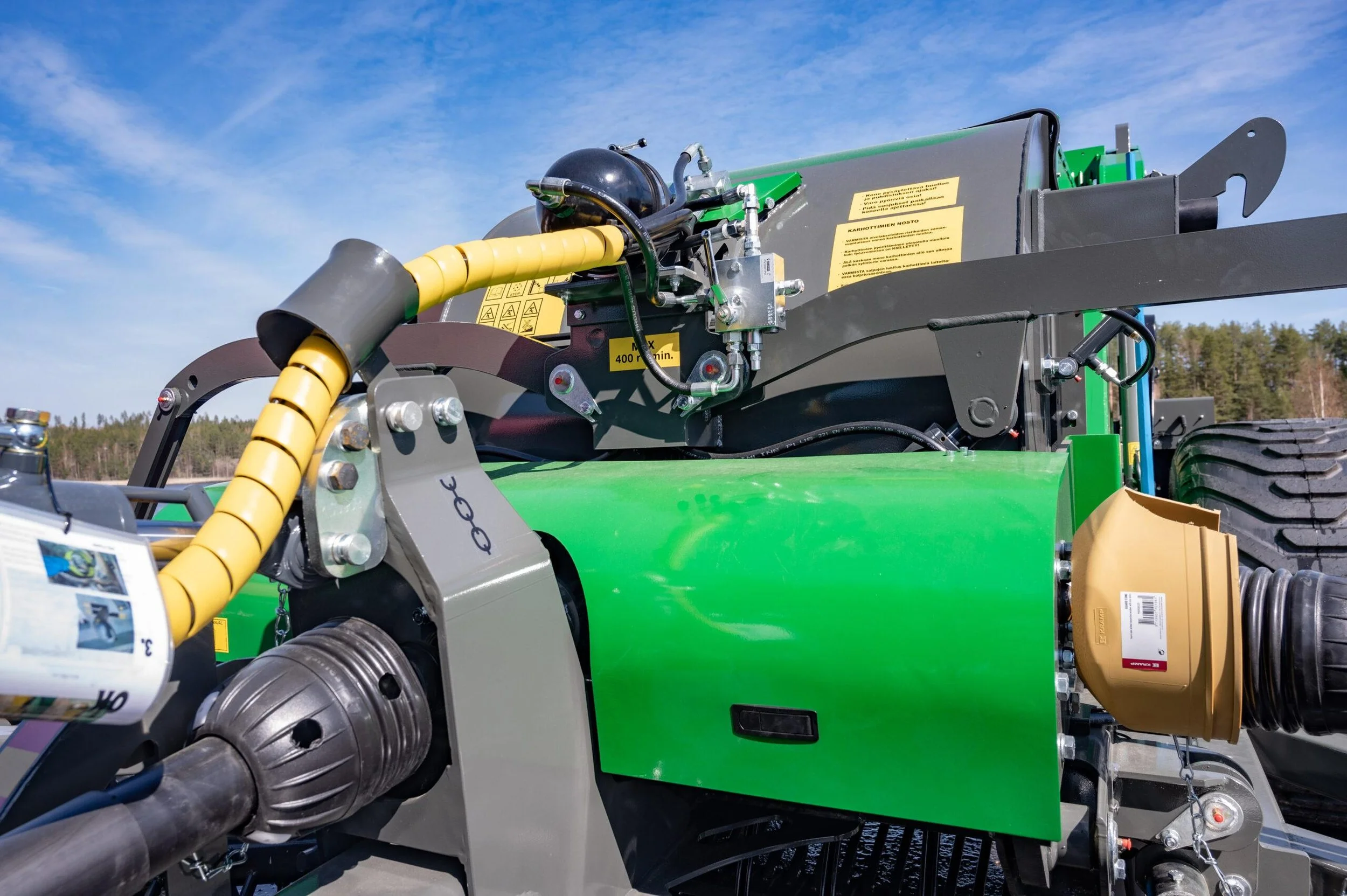

Hydraulic Functions

Simple, Low-Flow Hydraulic System with Full Functionality

The KIVI-PEKKA hydraulic system is designed for efficiency, operating with a low-flow requirement while delivering full control across all key machine functions. Operators benefit from intuitive hydraulic management that includes:

  • Rotor Wing Lift & Transport Lock – Easily raise the rotor wings and secure them for safe road transport.

  • Stone Hopper Lift & Dump – Smoothly raise and tip the hopper; equipped with locking taps.

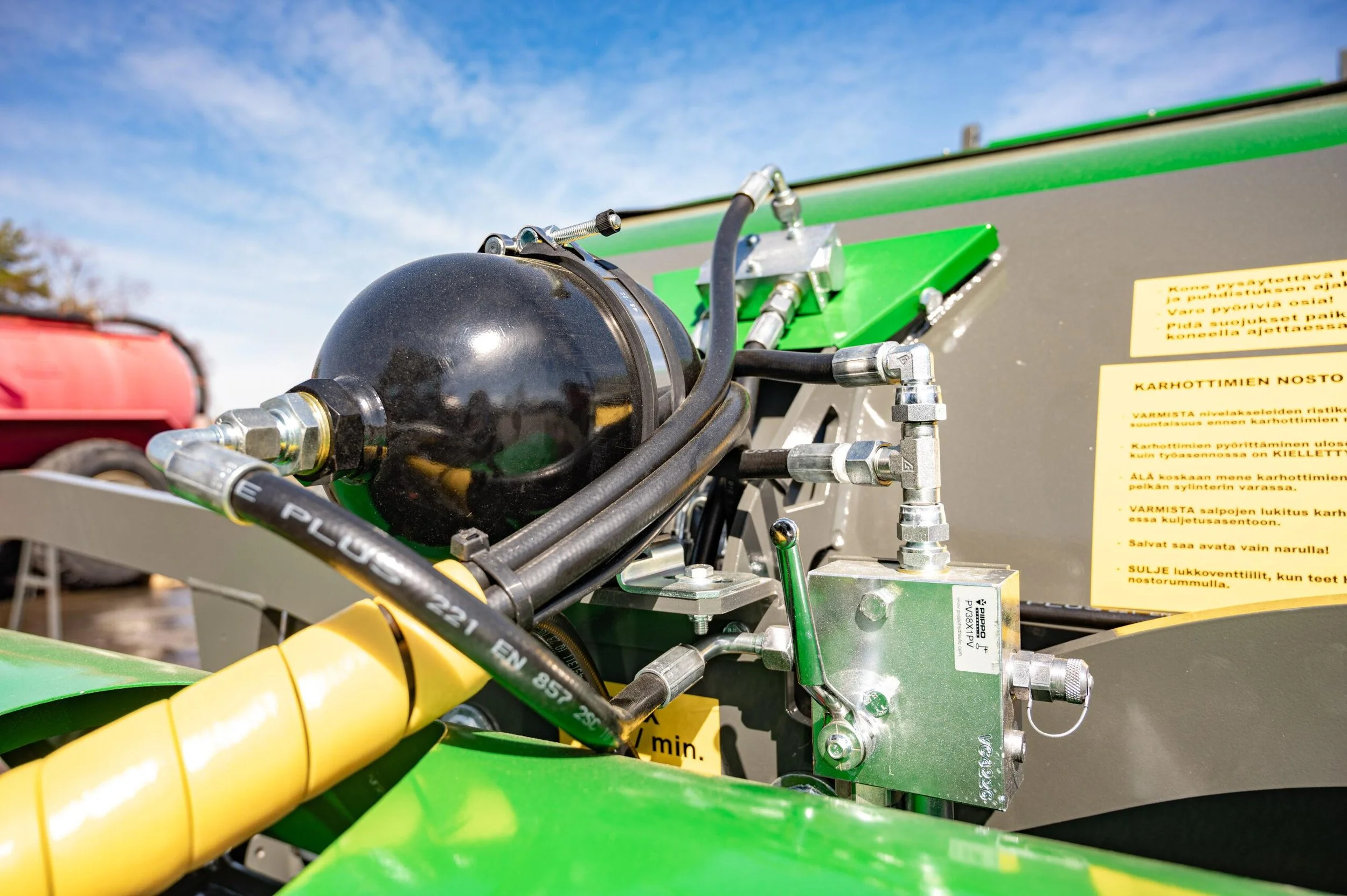

  • Flex Drum Lift with Accumulator Pressure – Hydraulically lift the flex drum and maintain optimal pressure via a built-in accumulator, allowing for smooth operation over large stones.

  • Drawbar Height Adjustment – Adjust the working height of the sieve to maintain consistent depth and ground contact across varying terrain.

This system ensures precise, reliable control without the need for high hydraulic flow rates, making it compatible with a wide range of tractors.

ISO-BUS

ISOBUS Automation for Effortless, Intelligent Operation

KIVI-PEKKA stone pickers equipped with ISOBUS control take automation to the next level. An ultrasonic sensor monitors ground contours and automatically adjusts the working depth in real time. If stone volume suddenly increases and starts to overload the system, the machine responds instantly—lightening the rotor and raising the Flex Drum to prevent blockages. Once the load returns to normal, the components resume their original positions automatically.

At headlands or field ends, a single button lifts the entire machine and pauses the PTO, streamlining turns and reducing operator fatigue. Additionally, the system is designed to automatically lift the picker when the PTO is disengaged or if the tractor begins to reverse.

This smart automation not only simplifies operation, allowing long workdays with less strain, but also helps to extend the life of key components by avoiding excessive wear and mechanical stress.

A heavy machinery control panel with a large touchscreen display showing a detailed hydraulic diagram, various buttons, switches, and joysticks for operation.

Download KIVI-PEKKA Brochure

A green Kivi-Pekka stone picker machine on a dirt field, used for professional stone picking.
